1.5 SSM/MB-CPL

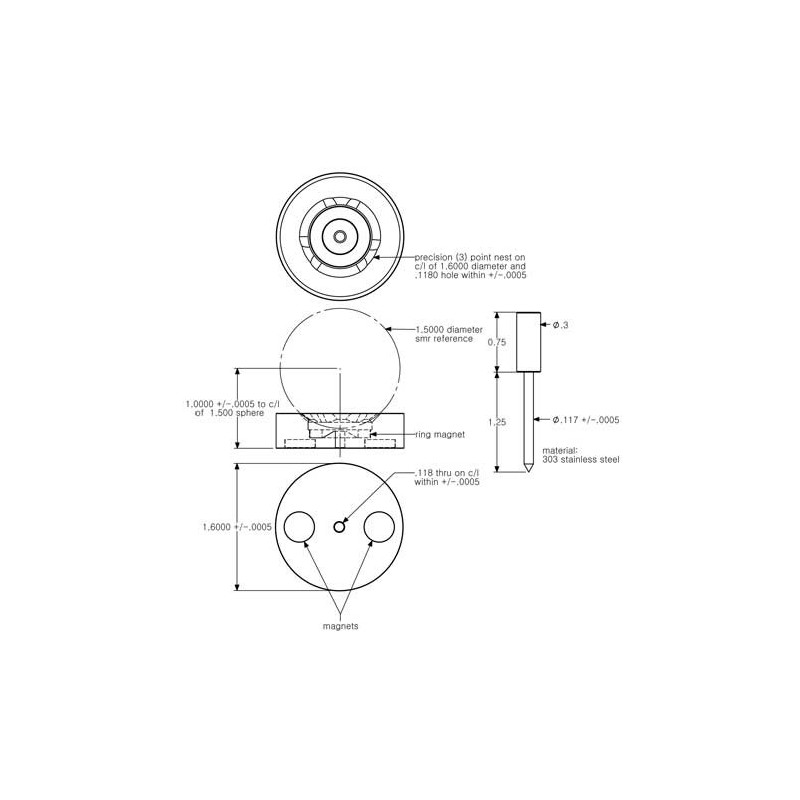

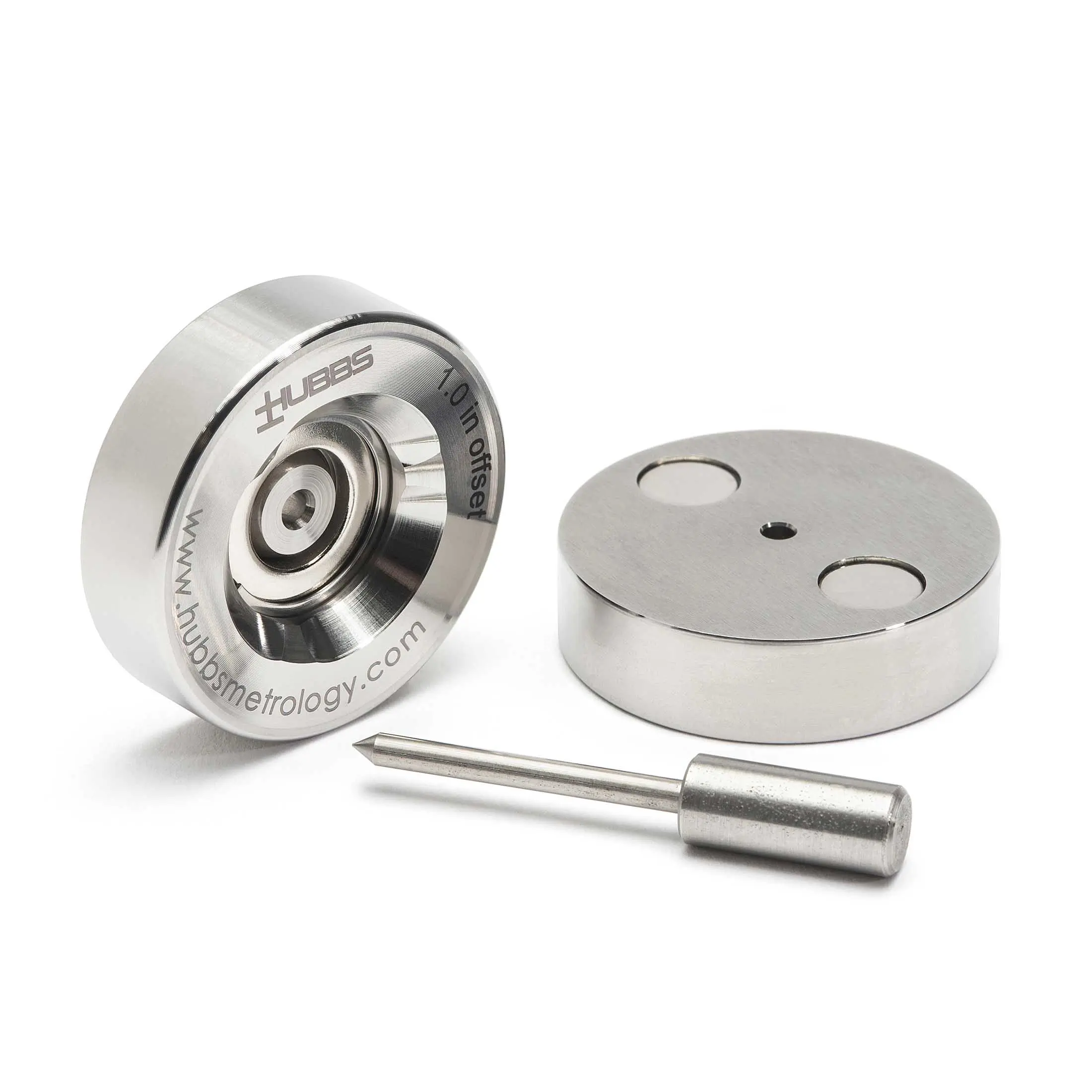

Shankless Sphere Mount / Magnetic Base Center Punch Locator

Designed to hold a Spherically Mounted Retro-Reflector, Theodolite Sphere, Photogrammetry Sphere, or other Spherical Type Target or Accessory for a critical height and centerline. The edge may be used to contact inside edges to give a value of .800 away.

Description

1.5 SSM/MB-CPL Features:

  • 17-4 Stainless steel heat-treated and hardened to R/C 40 – 44
  • Appropriate number of magnets on base for securing to flat steel surfaces.



Note:

Use the non-ferrous center-punch location to mechanically pick up existing center punch marks.

Additional information

Weight 0.4 lbs
Dimensions 1.0 × 1.0 × 1.0 in

1.5 SSM/MB-CPL Features:

  • 17-4 Stainless steel heat-treated and hardened to R/C 40 – 44
  • Appropriate number of magnets on base for securing to flat steel surfaces.



Note:

Use the non-ferrous center-punch location to mechanically pick up existing center punch marks.

  • Part Number
  • Hubbs Part Builder
    Product Certification

    Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

$372.00

Learn More About Product Certification
Click Here

Benefits of Certification

Affirms product has passed specific performance and quality assurance test

Verifies that in use product are still within specification

Provides traceability

Reduces In-house certification cost and time
