SB

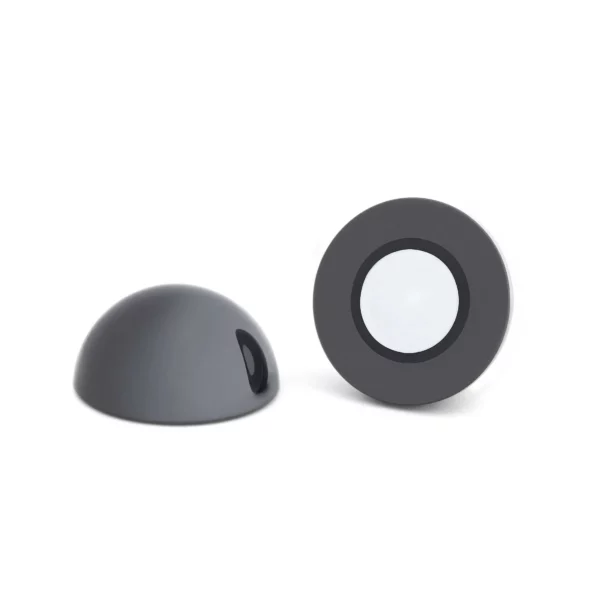

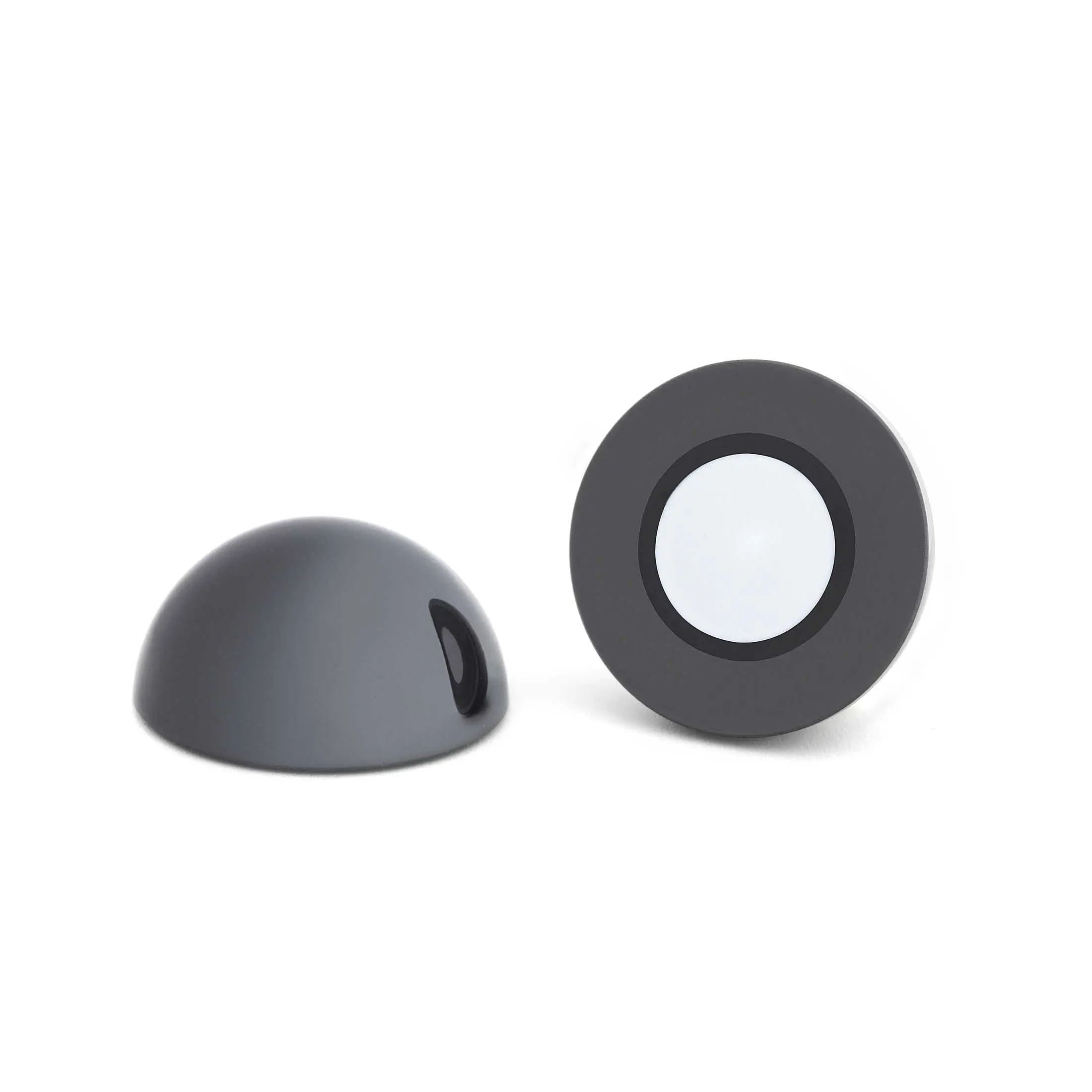

Split Bearing
SB
SB

Used with photogrammetry for targeting edges/surfaces.

Description

SB Features:

  • 1144 Steel, Black Oxide Finish (Standard)
  • .5 and 1.5 SBR can be used with standard Laser Tracker Sphere Mounts.



Note:

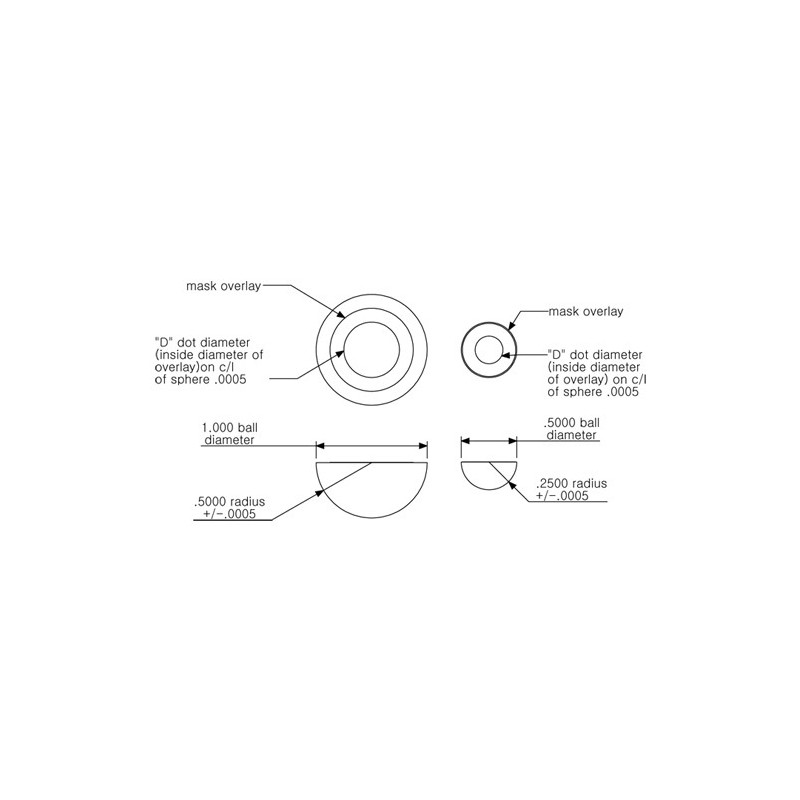

Ball Diameter | Largest Dot

  • .500″ — .250″ (6mm)
  • 1.000″ — .500″ (12mm)
  • 1.500″ — 20mm

Other ball diameter sizes possible, but subject to call-out quote.

Target dots are located within +/-.0005 on height (unless otherwise noted) or +/-.0005 in relationship of C/L of shank or body.

Additional information

Weight 0.2 lbs
Dimensions 1.0 × 1.0 × 1.0 in

SB Features:

  • 1144 Steel, Black Oxide Finish (Standard)
  • .5 and 1.5 SBR can be used with standard Laser Tracker Sphere Mounts.



Note:

Ball Diameter | Largest Dot

  • .500″ — .250″ (6mm)
  • 1.000″ — .500″ (12mm)
  • 1.500″ — 20mm

Other ball diameter sizes possible, but subject to call-out quote.

Target dots are located within +/-.0005 on height (unless otherwise noted) or +/-.0005 in relationship of C/L of shank or body.

  • Part Number
  • Hubbs Part Builder
    Product Certification

    Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

$65.00
