Target Skin Gap

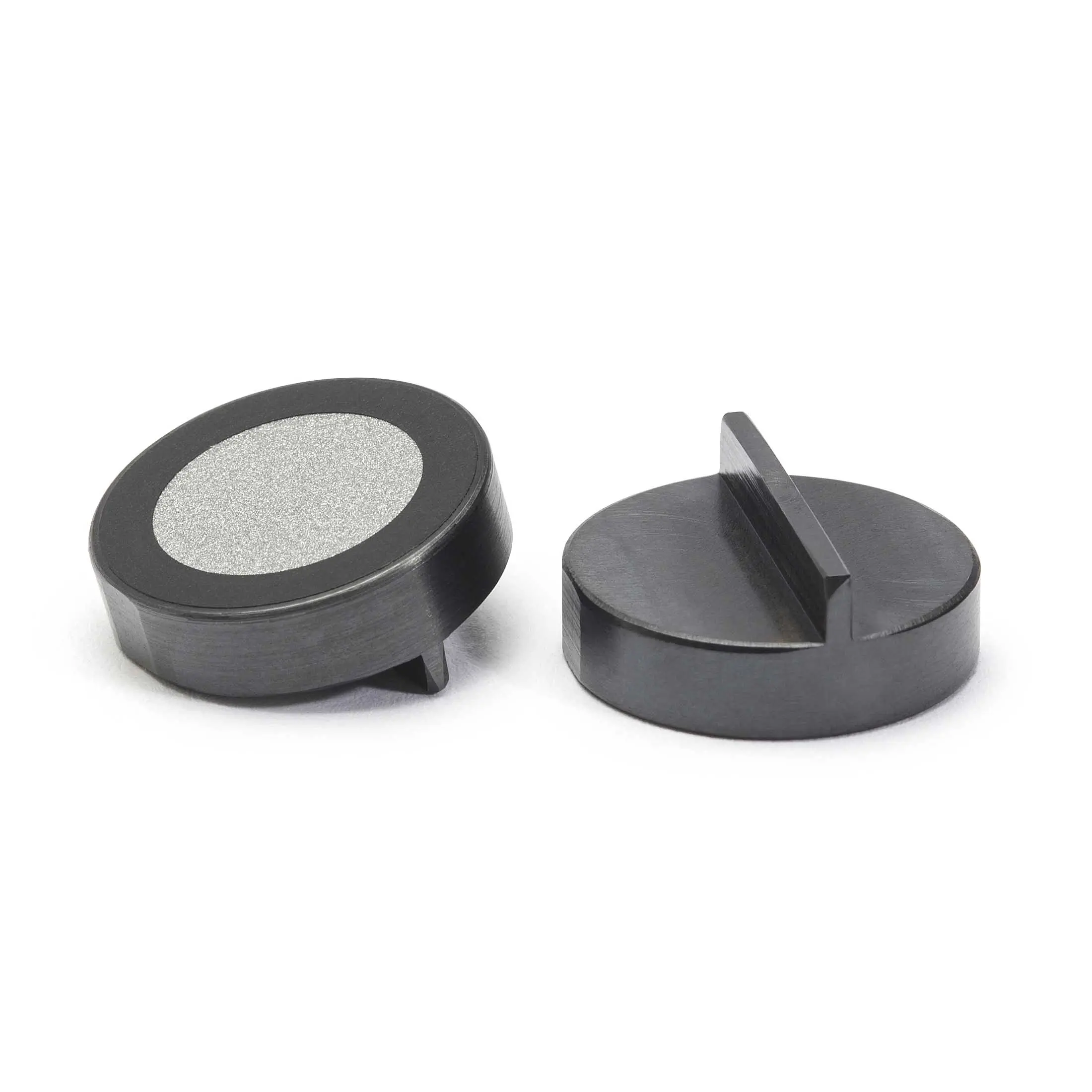

Used with photogrammetry for locating edges of sheet metal, slots, or grooves.

Description

TSG Feature:

1144 Steel, Black Oxide Finish (Standard)



Notes:

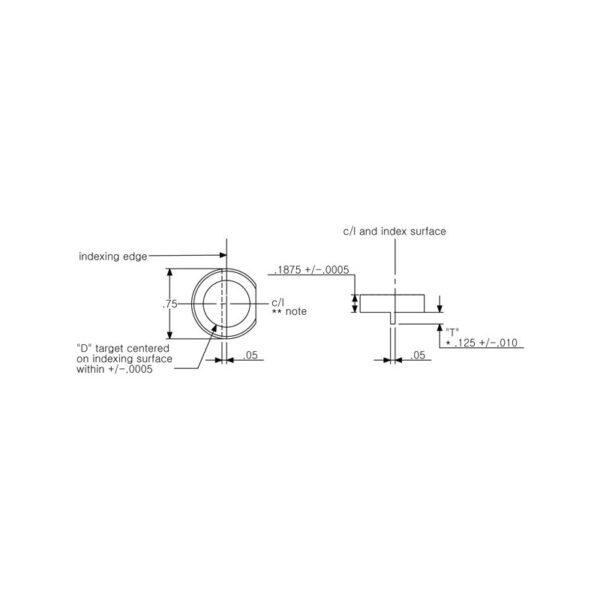

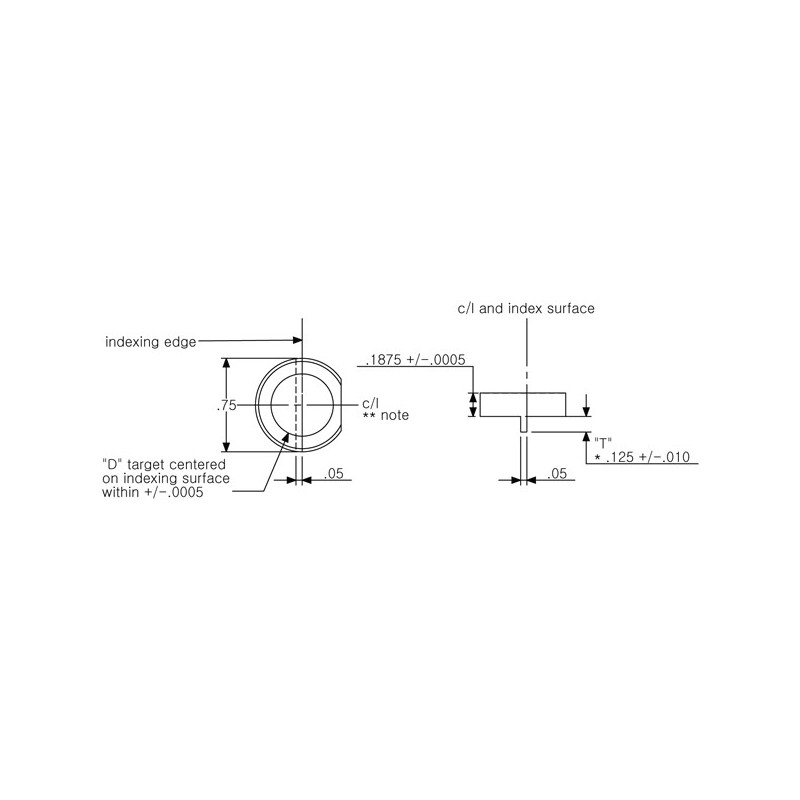

  • Target dots are located within +/-.0005 on height (unless otherwise noted) or +/-.0005 in relationship of C/L of shank or body.
  • The side of the target with the flat represents the side of the indexing surface.
  • Standard indexing tang length .1250″
  • Other indexing tang lengths possible, but subject to call-out quote.

Additional information

Weight 0.2 lbs
Dimensions 1.0 × 1.0 × 1.0 in

TSG Feature:

1144 Steel, Black Oxide Finish (Standard)



Notes:

  • Target dots are located within +/-.0005 on height (unless otherwise noted) or +/-.0005 in relationship of C/L of shank or body.
  • The side of the target with the flat represents the side of the indexing surface.
  • Standard indexing tang length .1250″
  • Other indexing tang lengths possible, but subject to call-out quote.
  • Part Number
  • Hubbs Part Builder
    Product Certification

    Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

$83.00

Learn More About Product Certification
Click Here

Benefits of Certification

Affirms product has passed specific performance and quality assurance test

Verifies that in use product are still within specification

Provides traceability

Reduces In-house certification cost and time
