1.5 SSM/MB-CP

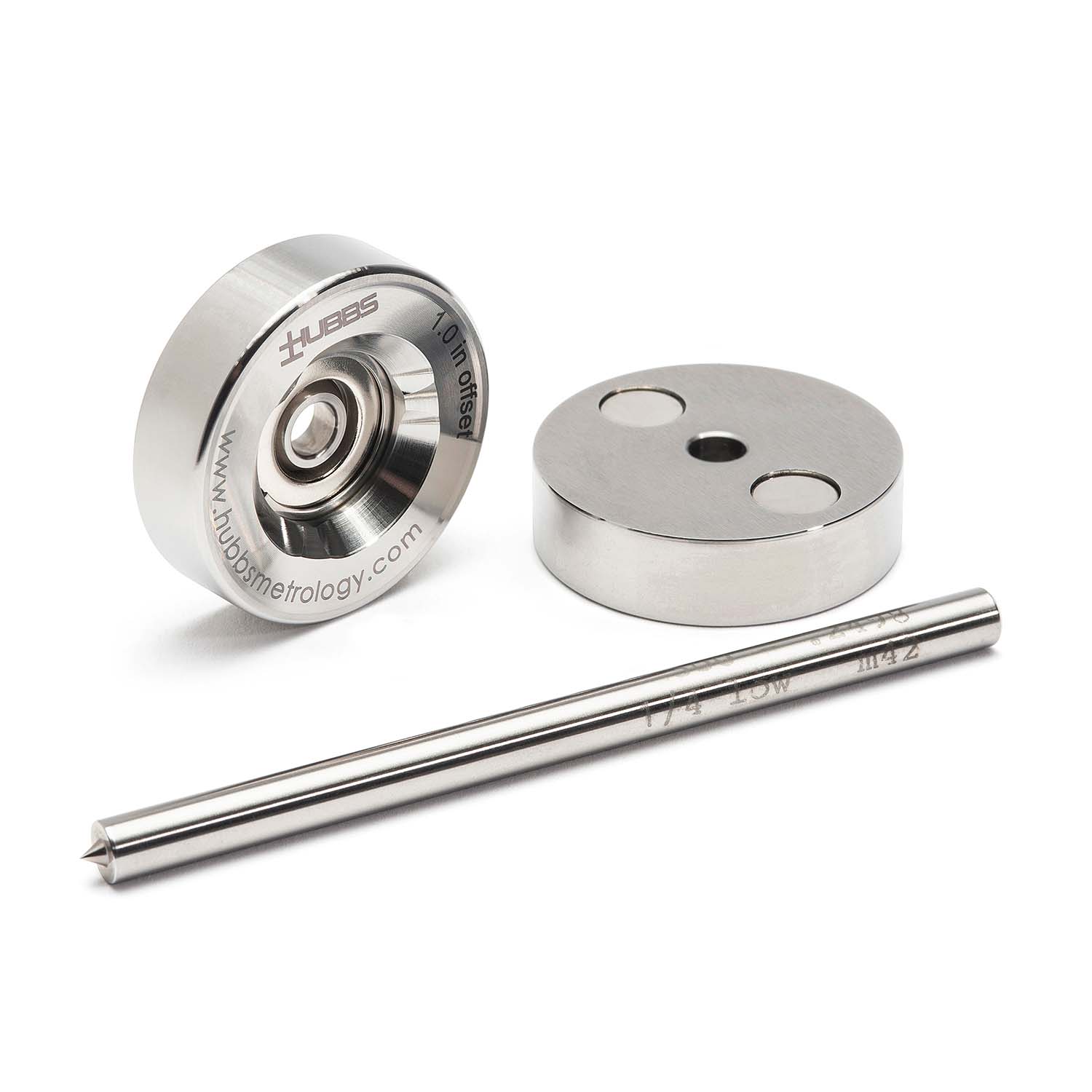

Shankless Sphere Mount / Magnetic Base Center Punch

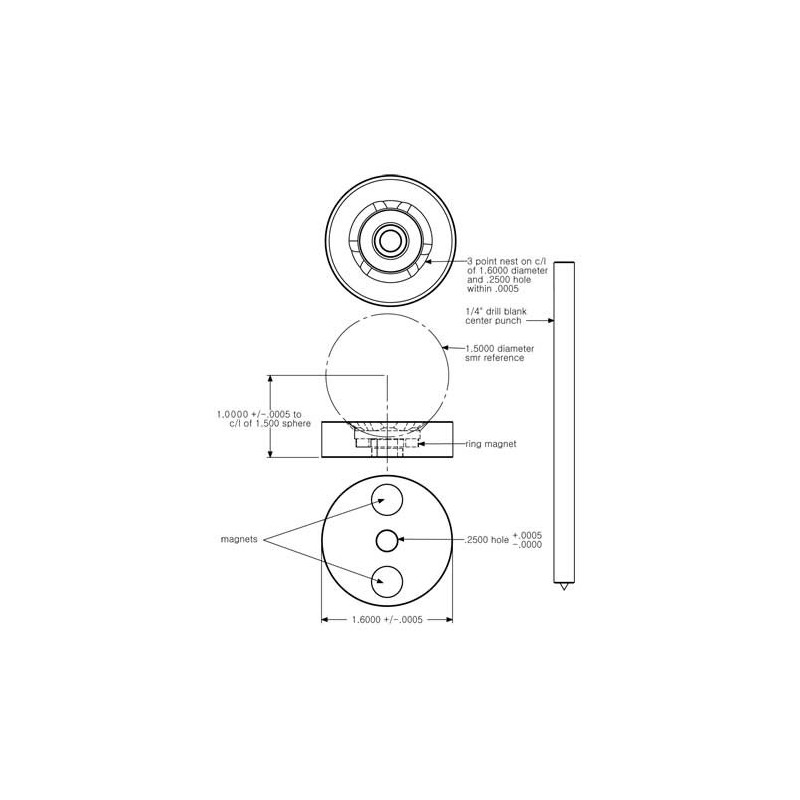

Designed to hold a Spherically Mounted Retro-Reflector, Theodolite Sphere, Photogrammetry Sphere, or other Spherical Type Target or Accessory for a critical height and centerline. The edge may be used to contact inside edges to give a value of .800 away. Can be used for mounting to tapped holes for semi-permanent applications.

Description

1.5 SSM/MB-CP Features:

  • 17-4 Stainless Steel heat-treated to R/C 40-44
  • Appropriate number of magnets on base for securing to flat steel surfaces.



Note:

Position Sphere Mount and Target into position – remove target and insert center punch in the center hole to punch an identifying mark or use the center punch to pick up an existing mark.



Additional information

Weight 0.4 lbs
Dimensions 1.0 × 1.0 × 1.0 in

1.5 SSM/MB-CP Features:

  • 17-4 Stainless Steel heat-treated to R/C 40-44
  • Appropriate number of magnets on base for securing to flat steel surfaces.



Note:

Position Sphere Mount and Target into position – remove target and insert center punch in the center hole to punch an identifying mark or use the center punch to pick up an existing mark.



  • Part Number
  • Hubbs Part Builder
    Product Certification

    Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

$372.00

Learn More About Product Certification
Click Here

Benefits of Certification

Affirms product has passed specific performance and quality assurance test

Verifies that in use product are still within specification

Provides traceability

Reduces In-house certification cost and time
