TLB

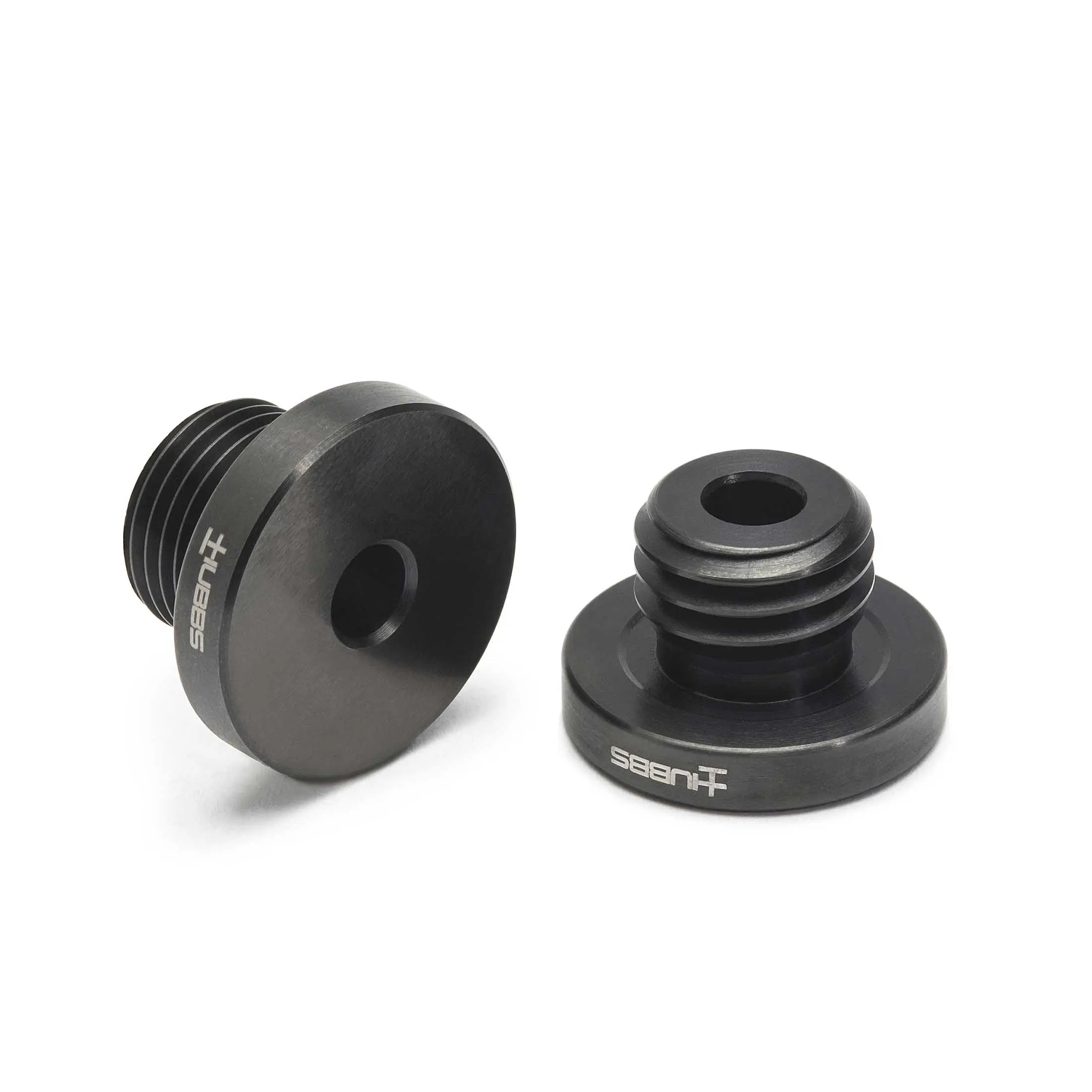

Threaded Linear Bushing

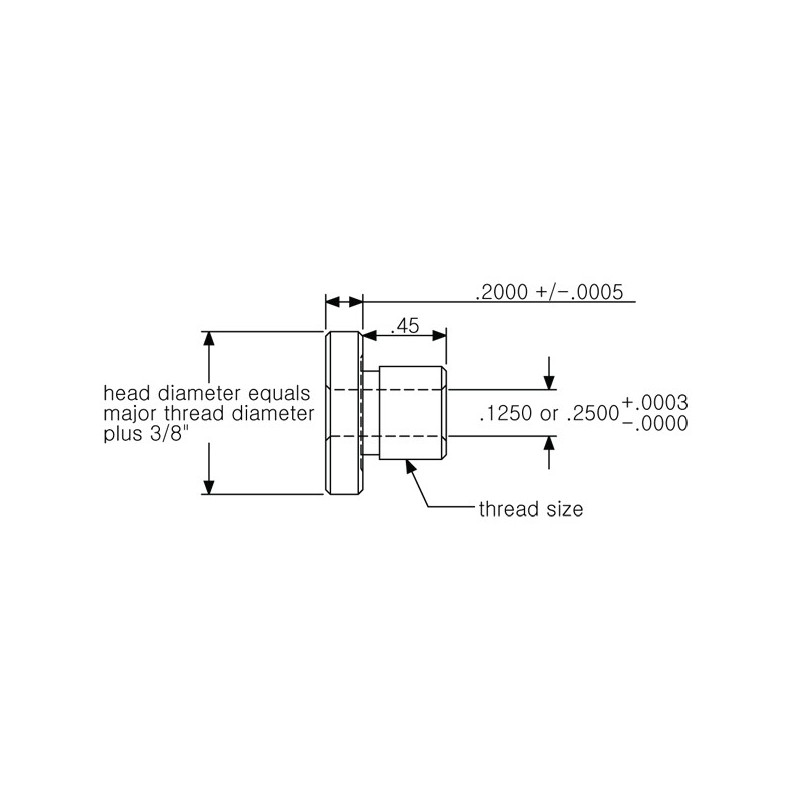

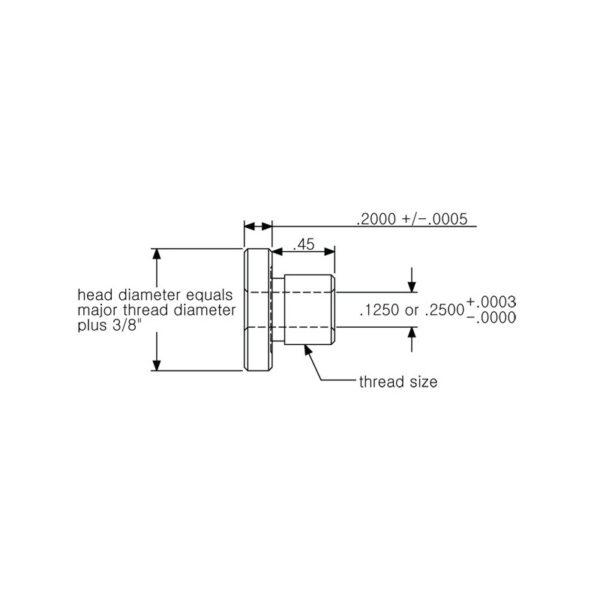

Used for adapting standard .2500″ or .1250″ shank targets to threaded holes. (Allow .2000″ for height difference)

Description

TLB Feature:

1144 Steel, Black Oxide Finish (Standard)



Notes:

  • .1250″ diameter hole, -.0000″/+.0003″ for major thread diameter .3750″ and less
  • .2500″ diameter hole, -.0000″/+.0003″ for major thread diameter over .3750″
  • All TLB’s have .2500″ bore except 1/4″ and M6 have .1250″ bore.
  • Most thread sizes are possible. Call for any thread size not listed. 636-285-4388

Additional information

Weight 0.3 lbs
Dimensions 1.0 × 1.0 × 1.0 in

TLB Feature:

1144 Steel, Black Oxide Finish (Standard)



Notes:

  • .1250″ diameter hole, -.0000″/+.0003″ for major thread diameter .3750″ and less
  • .2500″ diameter hole, -.0000″/+.0003″ for major thread diameter over .3750″
  • All TLB’s have .2500″ bore except 1/4″ and M6 have .1250″ bore.
  • Most thread sizes are possible. Call for any thread size not listed. 636-285-4388
  • Part Number
  • Hubbs Part Builder
    Product Certification

    Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

$85.00

Learn More About Product Certification
Click Here

Benefits of Certification

Affirms product has passed specific performance and quality assurance test

Verifies that in use product are still within specification

Provides traceability

Reduces In-house certification cost and time
