.5 SMN

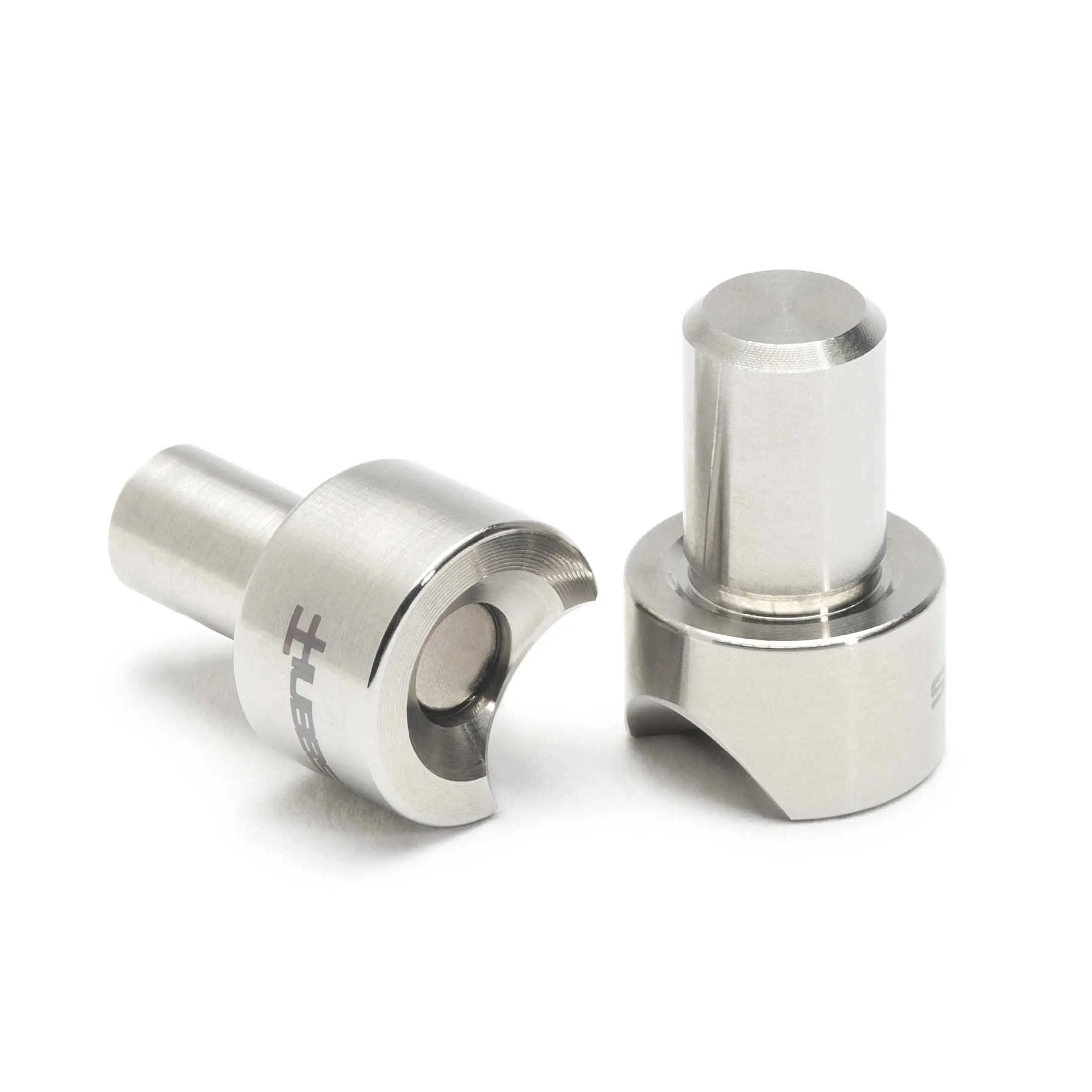

Sphere Mount Negative
5 SMN
0 5 SMN

Negative feature allows SMR rotation below horizontal.

Description

.5 SMN Features:

  • 1144 Steel, Black Oxide Finish (Standard)
  • Stainless Steel option (for more corrosive environments)



Note:

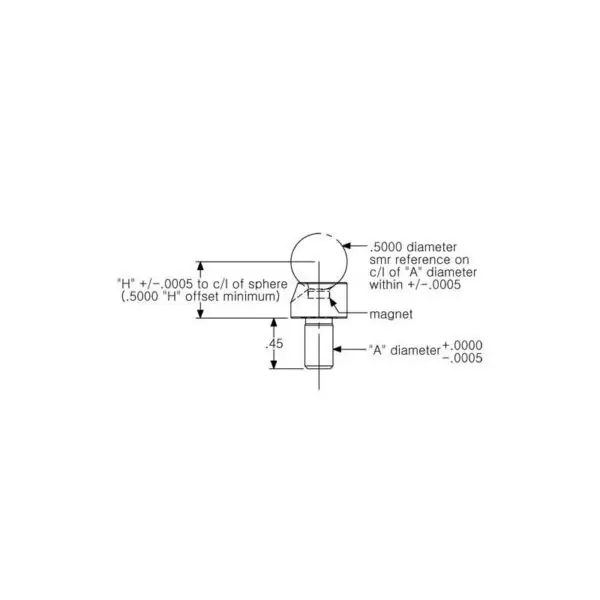

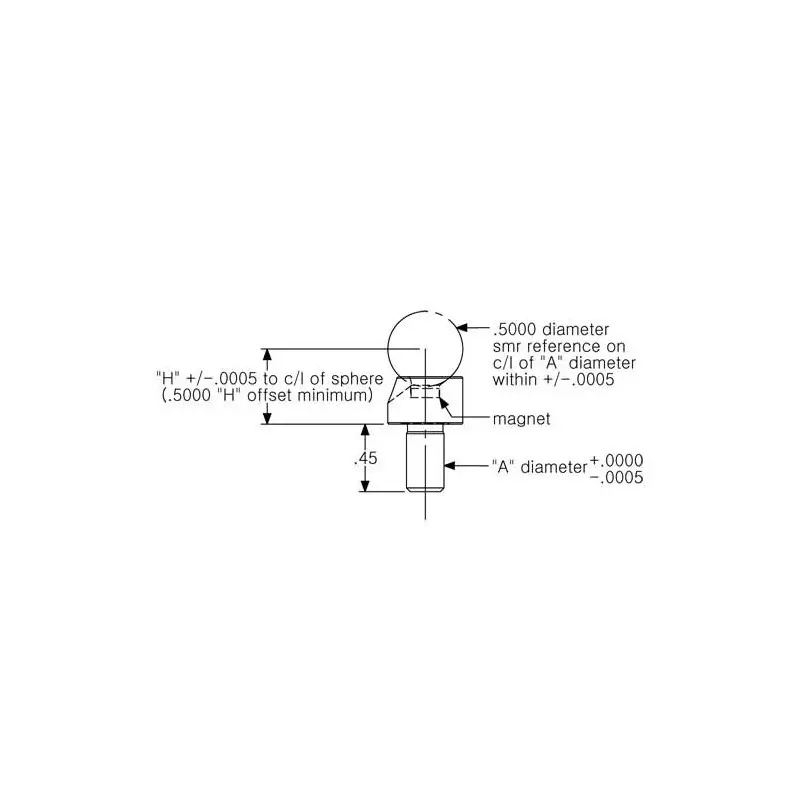

For a .3125 offset only, the minimum shank possible with a magnetic insert is a .2500 shank. For shank sizes smaller than .2500 with a .3125 offset, use SMLR design or they will be non-magnetic.

Additional information

Weight 0.10 lbs
Dimensions 1.0 × 1.0 × 1.0 in

.5 SMN Features:

  • 1144 Steel, Black Oxide Finish (Standard)
  • Stainless Steel option (for more corrosive environments)



Note:

For a .3125 offset only, the minimum shank possible with a magnetic insert is a .2500 shank. For shank sizes smaller than .2500 with a .3125 offset, use SMLR design or they will be non-magnetic.

  • Part Number
  • Hubbs Part Builder
    • For a .3125 offset only, the minimum shank possible with a magnetic insert is a .2500 shank.
    Product Certification

    Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

$92.50
